High-Payload Industrial UAV BLDC Motor Solutions for Heavy-Lift Drones
Published on August 8, 2026
Engineering Challenges in Industrial UAV Powertrains
Commercial and industrial UAVs—such as payload delivery drones, agricultural sprayers, and long-range VTOLs—require relentless continuous thrust. Standard off-the-shelf drone motors frequently fail in commercial duty cycles due to three technical bottlenecks:
Thermal Throttling & Demagnetization: Extended hovering with heavy payloads causes motor core temperatures to spike, degrading permanent magnet strength and leading to sudden thrust loss.
High-Frequency Frame Vibration: Poorly balanced rotors generate micro-vibrations that interfere with flight controller IMUs, camera gimbals, and structural integrity.
Payload Weight Penalty: Over-engineered, non-optimized motor housings add dead weight, severely compressing overall flight time and operational range.

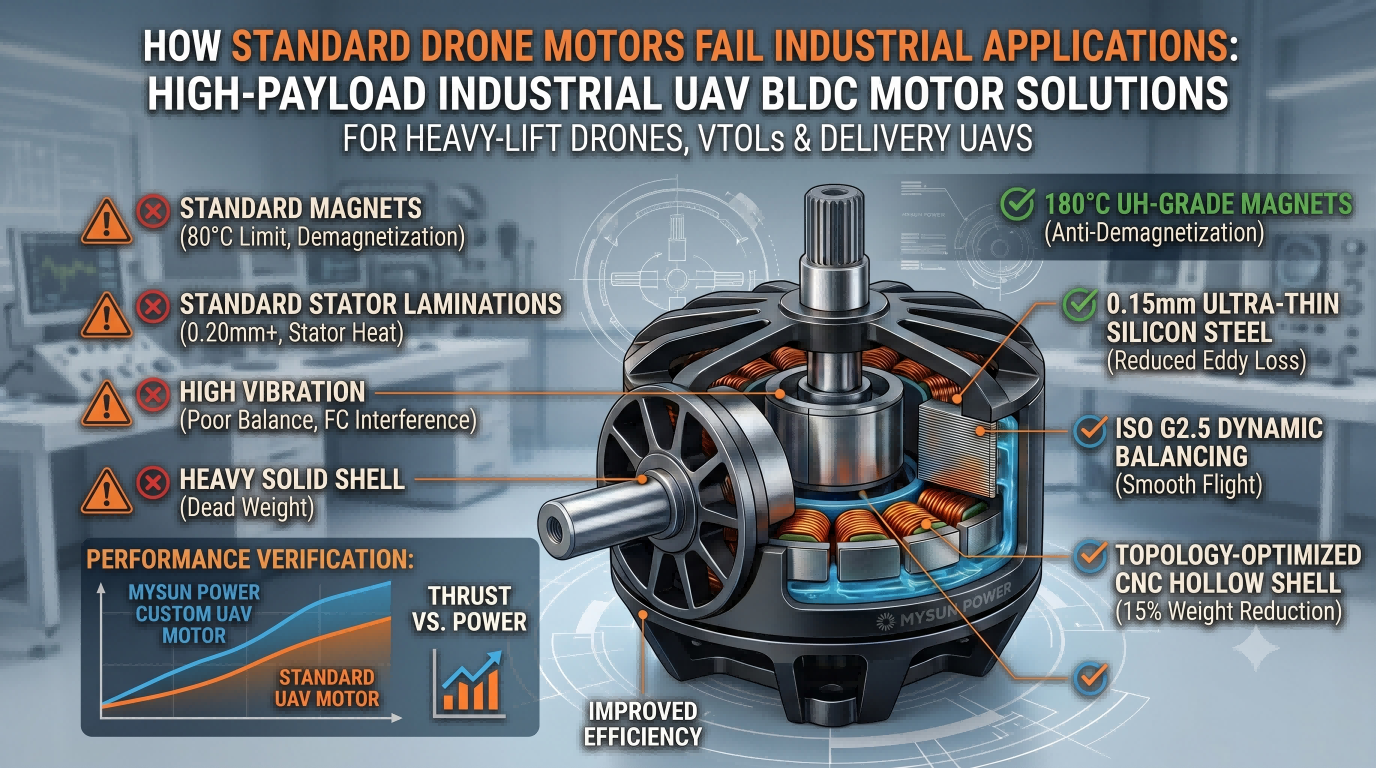

Technical Comparison: Off-the-Shelf Motors vs. MYSUN POWER Solutions
Failure / Performance Bottleneck | Off-the-Shelf Commercial Motors | MYSUN POWER Industrial UAV Solutions | Engineering Impact |
Magnet Heat Resistance | N42 / N52 Standard Magnets (80°C limit) | 180°C UH-Grade High-Temp NdFeB Magnets | Prevents thermal demagnetization during long hover cycles |
Stator Core Losses | 0.20mm - 0.35mm Standard Laminations | 0.15mm Ultra-Thin Japanese Silicon Steel Sheets | Reduces eddy current losses, lowering heat generation by 20% |
Rotor Balance Class | ISO G6.3 or Uncalibrated | ISO G2.5 High-Precision Dynamic Balancing | 60% reduction in high-frequency vibration, protecting FC IMUs |
Housing Design | Cast Aluminum / Heavy Solid Shells | Topology-Optimized CNC Hollow 6061-T6 Shell | Up to 15% motor weight reduction while maintaining structural rigidity |
Key Performance & Customization Parameters
We design integrated stator/rotor packages, KV-matched winding schemes, and complete motor-ESC propulsion kits matched to your payload profile:
Operating Voltage: 6S – 18S LiPo / LiFePO4 (22.2V – 76.8V DC)
Single-Rotor Thrust Range: 5 kg to 45 kg+ per rotor
System Electrical Efficiency: Up to 91%
Customization Scope: Winding KV customization, active centrifugal cooling housing, hollow shaft designs for internal cabling, and compatible ESC communication protocol.
Technical Documentation & Application Data
Planning a new heavy-lift drone or VTOL powertrain architecture? Submit your required target thrust, maximum outer diameter, battery voltage, and operating altitude. The engineering team will review project requirements and provide relevant technical documentation, performance data, and timeline estimates.
