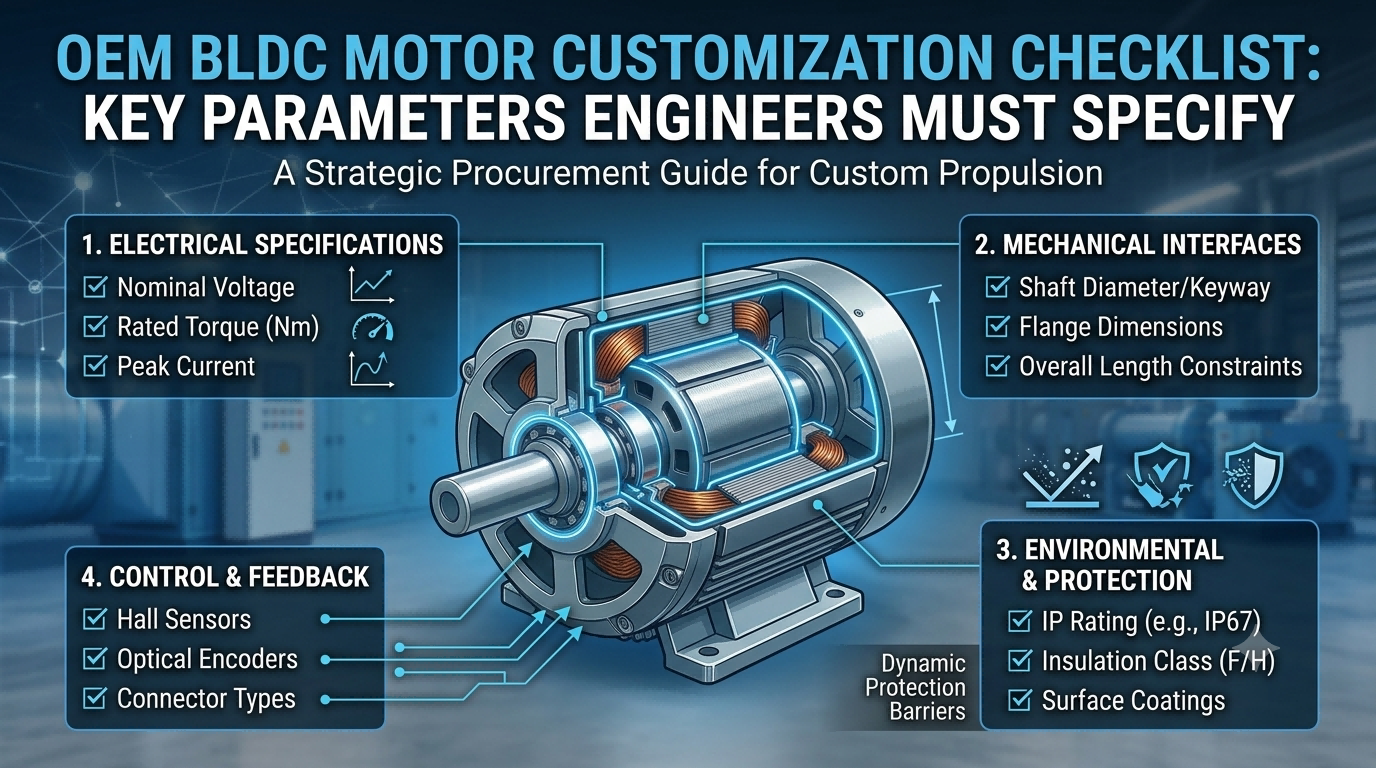

OEM BLDC Motor Customization Checklist: Key Parameters Engineers Must Specify

Ordering custom Brushless DC (BLDC) motors for specialized industrial machinery, robotics, or HVAC systems requires precise technical alignment between procurement officers and motor manufacturing engineers.

Clear specifications eliminate design iteration delays and ensure exact operational performance.

Use this essential OEM customization checklist to define your requirements before requesting a engineering evaluation or prototyping quote.

1. Electrical and Performance Parameters

- Operating Voltage Range: Specify nominal DC operating voltage and peak allowable voltage limits.

- Rated Torque and Speed: Define continuous operating torque (Nm) and target operating speed (RPM) under full load.

- Peak Current and Duty Cycle: State expected peak current draw and continuous duty cycle requirements.

2. Mechanical and Interface Dimensions

- Outer Diameter and Length Constraints: Define strict envelope size limits for housing integration.

- Shaft Specifications: Indicate keyway type, flat side (D-cut), threaded options, or custom shaft diameter tolerances.

- Flange and Mounting Hole Pattern: Provide standard bolt circle diameter (BCD) or custom mounting bracket preferences.

3. Environmental and Thermal Protection

- Ingress Protection (IP Rating): Select IP54 for basic indoor use, IP65/IP67 for dust and water exposure, or IP68 for deep subsea applications.

- Insulation Class: Specify Class F (155°C) or Class H (180°C) for high ambient temperature environments.

- Surface Coatings: Indicate special anodizing, anti-corrosion paints, or wash-down resistance requirements.

4. Control and Feedback Interfaces

- Commutation Method: Choose sensored (Hall effect sensors) for high starting torque or sensorless for high-speed simplicity.

- Feedback Systems: Specify optional optical encoders, magnetic encoders, or temperature sensors.

- Connectors and Wiring: Define lead wire length, shielding specs, and custom plug-and-play connector types.

Summary

Providing detailed specifications during initial outreach shortens engineering evaluation cycles, speeds up prototype development, and ensures reliable motor performance in final production runs.
