Commercial HVAC Engineering Cases & Applications
Guangdong MYSUN Power Technology Co., Ltd. delivers customized, high-efficiency BLDC, AC, and geared motor solutions engineered for commercial HVAC equipment, hospital air handling units, cleanroom ventilation, and severe-environment industrial systems worldwide.
Dual-Voltage (115V/230V) Motor Integration: Eliminating Centrifugal Switch Failures
Engineered dual-run capacitor motor architecture eliminating mechanical switch wear and electrolytic start capacitor burnout for severe-duty rooftop air conditioners, industrial blowers, and air movement units.
Challenge
Commercial HVAC equipment exported across North American (115V 60Hz) and European/Global (230V 50Hz) markets required dual-voltage motors. Traditional centrifugal switches suffered from contact oxidation, arcing, and mechanical sticking in humid/dusty environments, causing up to 8% field failure rates. Dual independent windings also created phase unbalance and acoustic vibration.
Solution
MYSUN engineering designed a switch-free, dual-run-capacitor topology with a center-tapped shared stator winding. The motor transitions between 115V parallel and 230V series winding configurations via keyed foolproof quick-disconnect pigtails. Two dedicated metallized film run capacitors maintain near-90° phase displacement across all operating frequencies without mechanical switches or start capacitors.
Results
- 100% elimination of mechanical centrifugal switches and failure-prone start capacitors
- 40% reduction in stator winding failure rates through shared symmetrical center-tap architecture
- Acoustic noise and mechanical vibration reduced by 3–5 dB (<42 dBA operational profile)
- Power factor maintained at PF ≥ 0.90 across both 115V and 230V operating voltages
- Single global motor SKU reduces OEM overseas inventory management costs by 50%

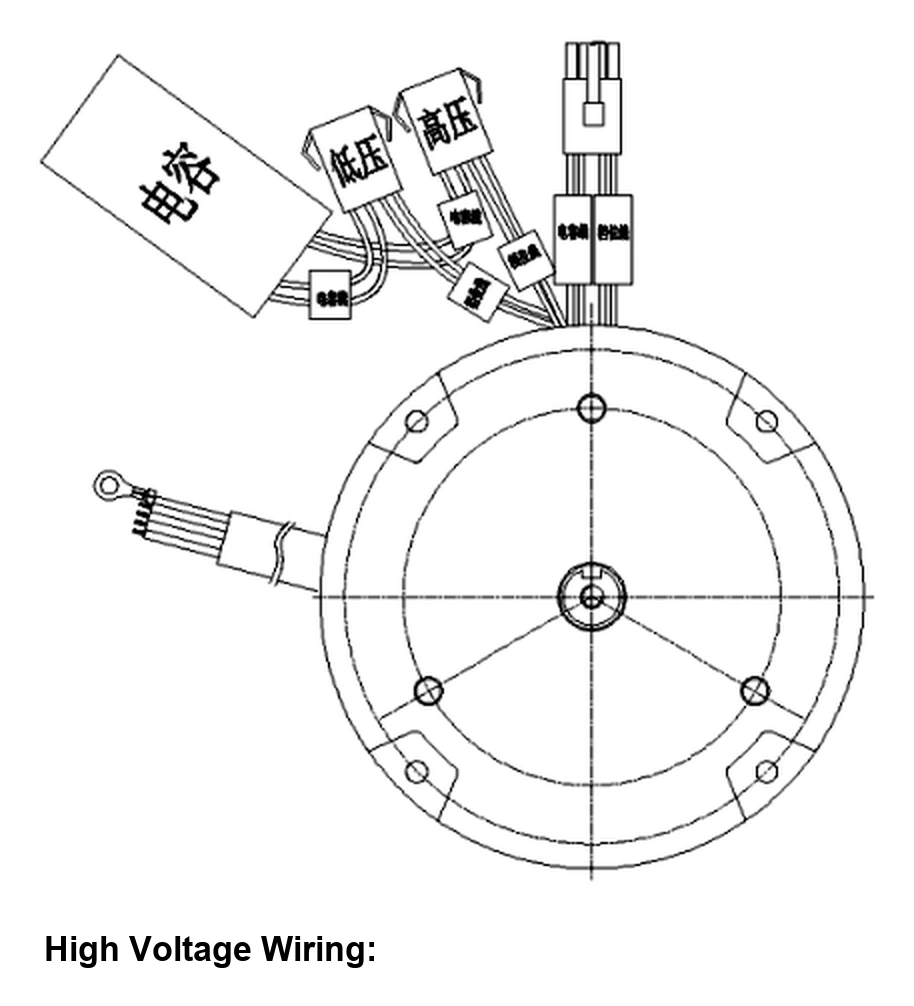

230V Series Mode: Shared center-tapped winding connected in series; balanced voltage divider halves line current for 230V 50/60Hz high-efficiency operation.
