BMC Plastic Encapsulated BLDC Motors: Eliminating Corrosion and Acoustic Resonance in Severe HVAC Environments

1. The Vulnerability of Metallic Housings in Demanding HVAC Applications

In high-duty commercial heating, ventilation, and air conditioning (HVAC) systems—such as cleanroom recirculators, indoor pool natatorium dehumidifiers, coastal air handling units (AHUs), and pharmaceutical laboratories—electric motors face severe environmental stressors:

• Condensation and Chemical Vapor Ingress: Ambient temperature swings generate continuous internal condensation. In corrosive atmospheres containing chlorine, sulfur dioxide, or cleaning sanitizers, metallic casings suffer galvanic and crevice corrosion, leading to stator ground faults.
• Acoustic Amplification: Traditional stamped sheet metal and thin-walled aluminum housings act as acoustic resonators. High-frequency electromagnetic excitation (6x and 12x fundamental slot frequencies) and 8–16 kHz inverter PWM carrier harmonics radiate directly into ductwork as annoying high-pitch tonal whines.
• Stray Inverter Shaft Currents: When driven by modern Variable Frequency Drives (VFDs), capacitive coupling between winding conductors and the grounded steel stator stack can induce shaft voltages that discharge across ball bearings, causing EDM pitting and bearing fluting failure.

2. Material Science: The Architecture of Bulk Molding Compound (BMC) Encapsulation

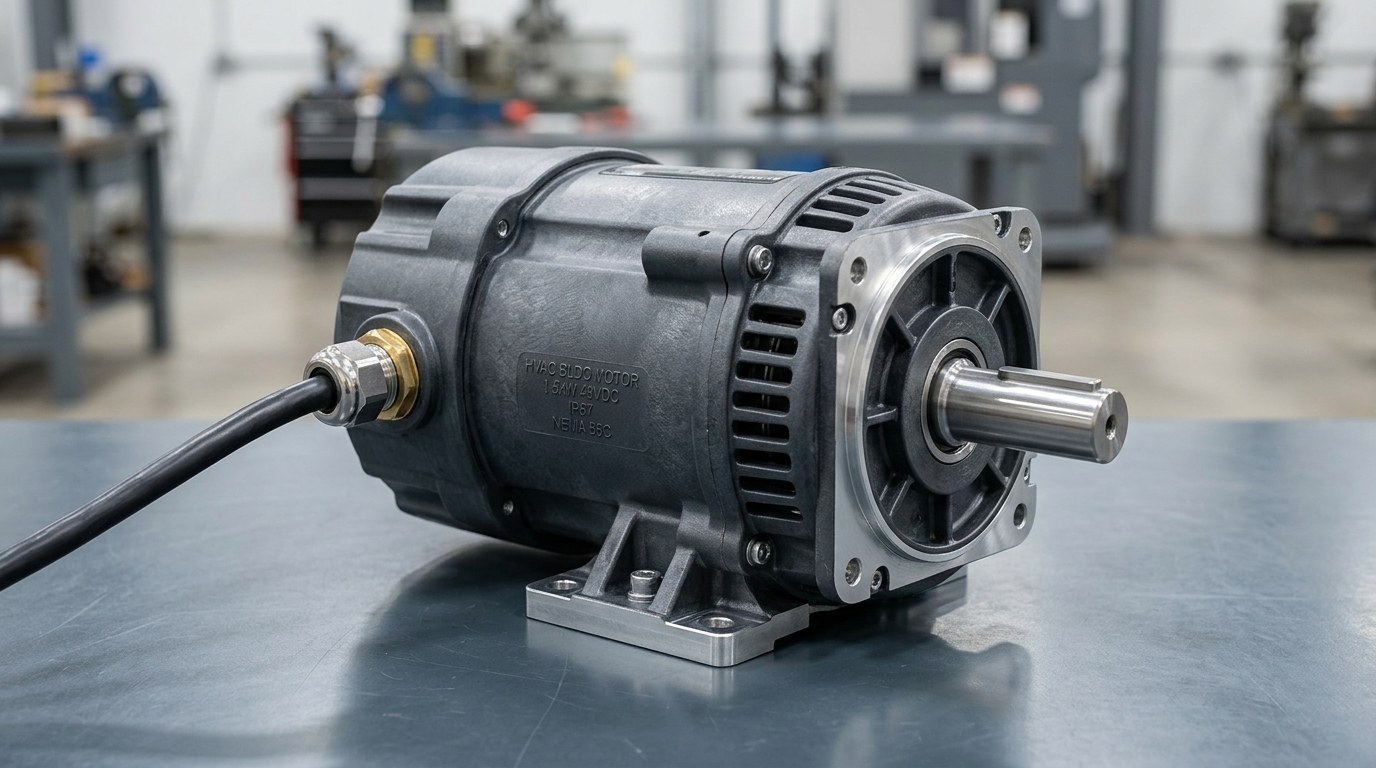

To overcome these physical limitations, Guangdong MYSUN Power Technology Co., Ltd. utilizes an advanced BMC (Bulk Molding Compound) injection compression encapsulation process. Rather than inserting the wound stator stack into a fabricated metal tube, the entire core assembly is molded inside a precision heated die with high-performance thermoset polyester composite:

Key advantages of this structural design include:

• Continuous Thermal Conduction Path: With thermal conductivity reaching \(0.95 \sim 1.15 ext{ W/(m}\cdot ext{K)}\)—nearly five times higher than stagnant air trapped in conventional motor end-bell cavities—heat from the copper windings conducts directly outward through the encapsulant, eliminating local hotspots.
• UL94-V0 Fire Retardancy: The inorganic filler matrix suppresses combustion and self-extinguishes within 10 seconds of flame removal, fulfilling strict international building code requirements for commercial plenum air handling installations.
• Intrinsic Double Insulation (Class II Safety): The thermoset shell delivers dielectric breakdown strength exceeding \(25 ext{ kV/mm}\), isolating electrical components without separate grounding jumpers.

3. Acoustic Superiority: Sub-38 dBA Sound Attenuation

In applications such as hospital fan coil units, luxury hotel guestroom ventilation, and residential heat recovery ventilators (HRVs), acoustic comfort is a primary competitive differentiator.

BMC possesses an internal mechanical loss factor (\(\eta pprox 0.04 - 0.06\)) that is 8 to 12 times higher than steel (\(\eta pprox 0.003\)) or cast aluminum (\(\eta pprox 0.005\)). Mechanical vibrations generated by radial Maxwell stress waves across the air gap are dissipated internally as microscopic molecular friction rather than radiated as airborne noise.

4. OEM Integration & Customization Parameters

Guangdong MYSUN Power manufactures customized plastic encapsulated BLDC and AC motors tailored to OEM equipment geometries and mechanical mounting brackets:

5. Summary & Application Recommendations

For HVAC manufacturers developing premium commercial equipment, specifying BMC plastic encapsulated BLDC motors provides an immediate leap in product durability and perceived quality. The elimination of rust, paired with laboratory-proven noise reductions, substantially lowers warranty claims and total cost of ownership (TCO) across 10-year operating lifecycles.
