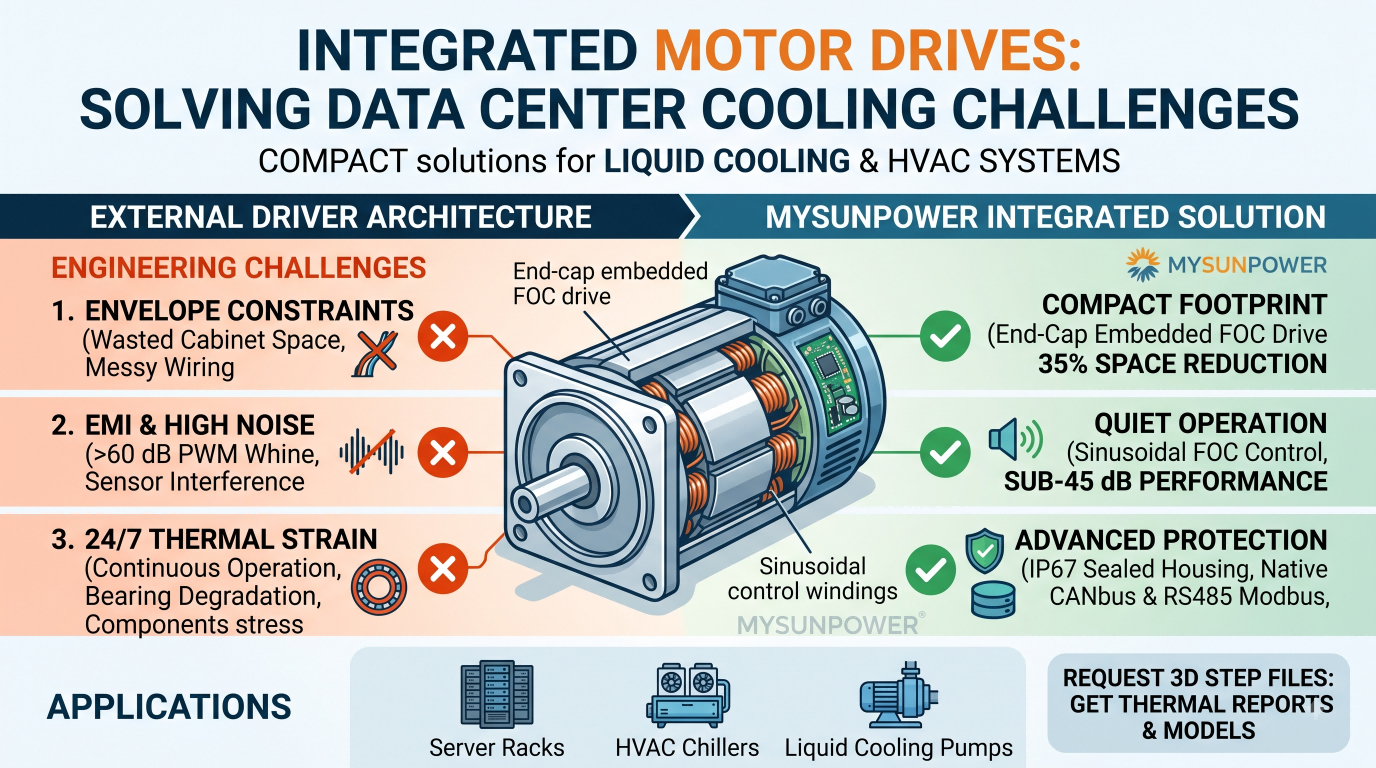

Integrated EC/BLDC Drives for Industrial Liquid Cooling & Data Center HVAC Systems
Engineering considerations for integrated EC and BLDC drives used in server liquid cooling and industrial HVAC chiller applications, including drive integration, thermal management, and continuous duty operation.
Engineering Challenges in Liquid Cooling
Traditional liquid cooling pumps and HVAC fans face three core bottlenecks:
Envelope Constraints: External drivers waste cabinet space and add complex wiring.
EMI & High Noise: PWM switching generates acoustic whine (>60 dB) and sensor interference.
24/7 Thermal Strain: Continuous operation degrades motor bearings and stator insulation.
Technical Comparison
Feature | External Driver Architecture | MYSUN POWER Integrated Solution |
Footprint | Cabinet-mounted controller | Integrated end-cap drive architecture (compact footprint) |
Noise Level | High PWM whine (>60 dB) | Sinusoidal drive control (low acoustic noise design) |
Protection & Protocol | IP54 / Basic Analog 0-10V | Environmental sealing as required / Communication protocol options |
Key Specifications & Customization
Operating Voltage: 24V–48V DC / 110V–380V AC
Speed Range: 500–6,000 RPM (Closed-loop FOC via RS485/CANbus)
Customization Scope: Custom mounting flanges, shaft geometry, and integrated fluid temperature sensors.
Ready to Optimize Your Motor Performance & Lower TCO?
Guangdong MYSUN Power Technology Co., Ltd. delivers customized BLDC, AC, and high-torque geared motor solutions tailored to your thermal, mechanical, and efficiency specs. Engineering proposals in 14–30 days; prototype batches (3–5 units) and production timelines confirmed following engineering review.
