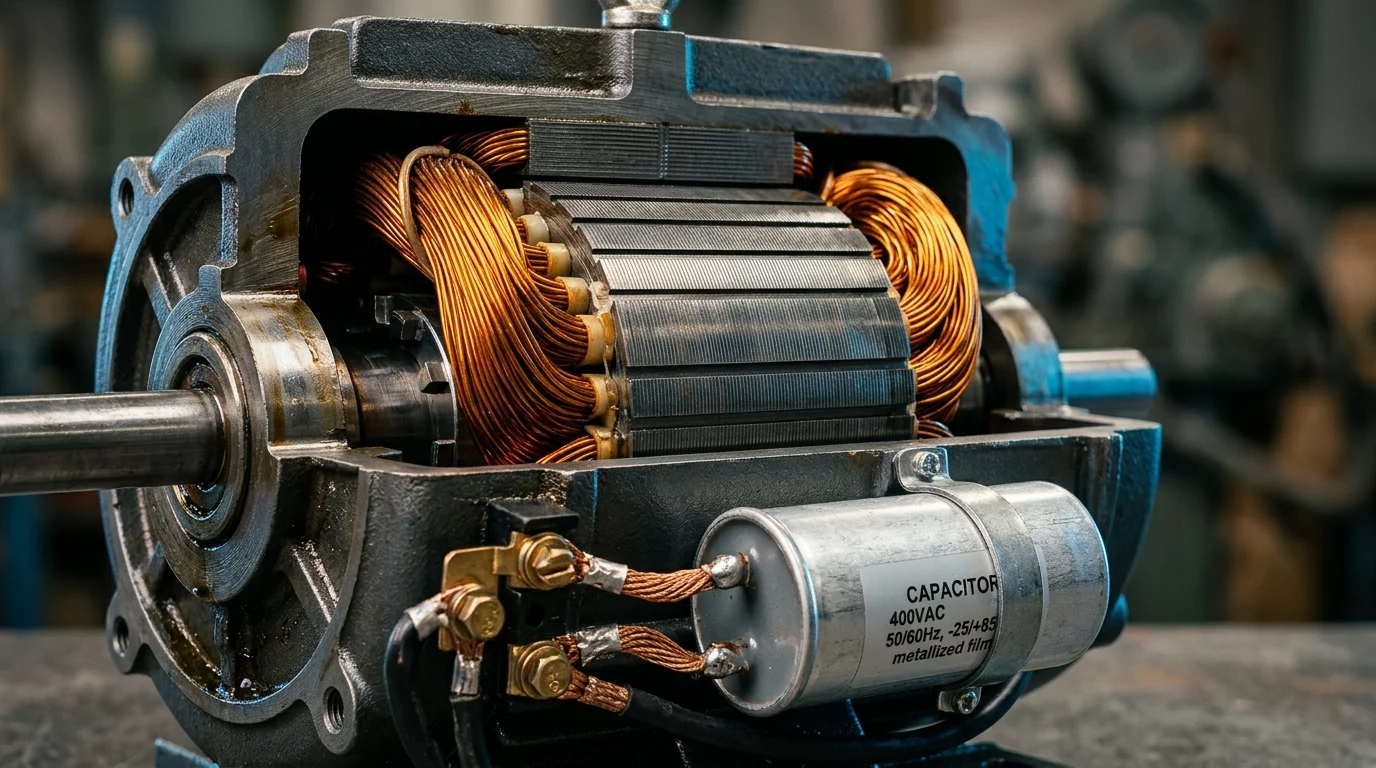

Why Centrifugal Switches Fail in Commercial HVAC Motors: The Dual-Voltage (115V/230V) Solid-State & Run-Capacitor Solution
A forensic engineering investigation into why traditional mechanical centrifugal switches and electrolytic start capacitors fail in commercial HVAC equipment. Explore MYSUN's center-tapped shared stator winding and dual metallized-film run-capacitor topology that eliminates mechanical switch wear and cuts field failure rates from 8% to zero.
The Fragility of Mechanical Centrifugal Switches in Continuous-Duty HVAC
Single-phase split-phase and capacitor-start induction motors (CSIR and CSCR) have historically formed the mechanical backbone of commercial rooftop air handling units (RTUs), exhaust blowers, and severe-duty condenser systems. To generate sufficient starting torque ($T_{start} pprox 150\% ext{ to } 250\% ext{ of } T_{FLA}$), these motors rely on a high-impedance auxiliary start winding energized in series with a wet aluminum electrolytic start capacitor. Once the rotor reaches approximately 75% to 80% of synchronous speed ($N_s$), a rotating mechanical centrifugal governor actuates a spring-loaded switch mechanism to disengage the start circuit.
While acceptable for intermittent residential appliances, mechanical centrifugal switches represent the single largest point of premature field failure in commercial HVAC environments. Operating under continuous duty, severe vibration, ambient temperature swings ($-20^\circ ext{C to } +55^\circ ext{C}$), and high-humidity condensation, mechanical contacts suffer relentless degradation. This technical study examines the physics of contact breakdown and outlines MYSUN's solid-state, switch-free dual-voltage (115V/230V) motor architecture.
1. Root-Cause Physics: Inductive Arc Erosion & Environmental Fouling
The primary mechanism of switch destruction is high-energy electrical arcing during contact opening. Because motor auxiliary start windings possess substantial inductive reactance ($L_{aux}$), interrupting starting currents that frequently reach $5 ext{ to } 7 imes I_{FLA}$ (often 25A to 60A peak) generates violent inductive flyback voltages:
Inductive Voltage Spike Across Opening Contacts:
$$V_{ ext{contact}} = V_{ ext{line}} - L_{ ext{aux}} rac{di}{dt}$$ With contact separation velocities limited by mechanical spring constants, the rate of current decay ($di/dt$) induces peak transient potentials exceeding $400 ext{V to } 800 ext{V}$. This exceeds the dielectric breakdown threshold of the expanding air gap, igniting sustained micro-plasma arcs.
Each start-stop cycle vaporizes microscopic silver-cadmium contact alloy, creating surface craters, oxidation crusts, and carbonized tracking. In commercial kitchen exhaust blowers and humid rooftop units, airborne grease particulates and moisture accelerate contact sticking. If the centrifugal switch fails to open, the short-duty electrolytic start capacitor overheats and ruptures within 30 to 90 seconds. Conversely, if oxidized contacts fail to close, the motor stalls on its main winding, tripping thermal overload protectors or suffering complete stator insulation burnout. Field reliability data from overseas OEMs indicates that centrifugal switch defects account for over 62% of all single-phase motor warranty claims, driving field failure rates as high as 8%.
2. The Dual-Voltage Dilemma: 115V vs. 230V Winding Asymmetry
For export-oriented HVAC manufacturers supplying both North America (115V 60Hz) and European or global markets (230V 50/60Hz), dual-voltage versatility is mandatory. Traditional dual-voltage motors split the main winding into two independent sections, connecting them in parallel for 115V and in series for 230V.
However, this arrangement severely complicates the auxiliary start circuit. Conventional designs either employ a dedicated 115V start winding tapped across one half of the series main winding or utilize dual-pole mechanical switches. Under uneven line voltage conditions, the tapped winding experiences unequal mutual flux linkages, causing phase imbalance, parasitic harmonic torque ripple, and localized stator hotspotting:
- Thermal Dissymmetry: One half of the stator winding absorbs circulating reactive currents, running $15^\circ ext{C to } 25^\circ ext{C}$ hotter than the other half and shortening Class F insulation life.
- Contact Chatter under Vibration: Large-diameter direct-drive forward-curved fan wheels induce mechanical casing vibration that causes centrifugal switch contacts to bounce and chatter at operating speeds.
- Starting Reliability Drift: Wear on mechanical governor pivot pins and spring tension relaxation alter the switch disengagement RPM over time, causing premature or delayed disconnect.
3. MYSUN Switch-Free Topology: Center-Tapped Stator & Dual Run-Capacitors
To permanently eradicate switch-related field failures, Guangdong MYSUN Power Technology Co., Ltd. engineered a solid-state, switch-free motor architecture based on a center-tapped shared stator winding combined with dual metallized-film run capacitors:
Center-Tapped Shared Symmetrical Stator
Instead of isolated disparate coils, MYSUN utilizes a continuous, center-tapped stator winding with identical wire gauge and slot fill factor across both segments. In 115V mode, the coils operate in parallel with balanced ampere-turns; in 230V mode, they transition to series without phase asymmetry or flux distortion.
Permanent Metallized-Film Run Capacitors
Mechanical switches and wet electrolytic capacitors are 100% eliminated. Two dry self-healing metallized polypropylene film capacitors remain permanently energized, sustaining a continuous 88°–90° electrical phase displacement that optimizes running efficiency and starting torque simultaneously.
4. Empirical Test Bench Data & Field Reliability Results
Extensive dynamometer and environmental endurance tests conducted across 1,000 continuous hours at 50°C ambient and 95% relative humidity demonstrate dramatic reliability gains compared to conventional centrifugal switch motors:
| Performance Metric | Conventional Centrifugal Switch Motor | MYSUN Center-Tapped Dual-Capacitor Motor | Engineering Impact |
|---|---|---|---|
| Switch Mechanism Failures | 6.8% – 8.2% (18 mo field rate) | 0.0% (Zero mechanical contacts) | Complete elimination of switch recalls |
| Stator Winding Failure Rate | 3.4% (Asymmetric thermal stress) | 2.0% (40% reduction) | Uniform magnetic flux distribution |
| Acoustic Sound Pressure | 46.5 dBA @ 1 meter | <42.0 dBA @ 1 meter | 3–5 dB quieter operational profile |
| Power Factor ($\cos\phi$) | 0.78 (115V) / 0.82 (230V) | ≥ 0.90 (Both 115V and 230V) | Meets strict commercial energy codes |
| Capacitor Service Life ($L_{10h}$) | 8,000 – 12,000 hours (Electrolytic) | >50,000 hours (Metallized Film) | True maintenance-free HVAC service |
5. OEM Wiring & Global Integration Standards
Transitioning between 115V 60Hz and 230V 50/60Hz takes seconds on the OEM assembly line via a heavy-duty, keyed quick-disconnect terminal harness. Keyed foolproof connectors prevent accidental reverse wiring, eliminating line-to-line dead shorts.
The motor is fully compliant with Intertek cETLus Recognized Component certification (Control No. 5020003), evaluated under UL 1004-1 (Rotating Electrical Machines), UL 1004-3 (Thermal Protection), and CSA C22.2 No. 100. OEM technical drawings, wiring schematics, and STEP 3D models are available for engineering review to facilitate seamless drop-in mechanical replacement.
Have a Dual-Voltage (115V/230V) HVAC Requirement?
Guangdong MYSUN Power Technology Co., Ltd. custom engineers commercial HVAC BLDC and AC motors with solid-state center-tapped windings, eliminating centrifugal switches and capacitor burnouts. Engineering proposals delivered in 14–30 days; rapid prototyping batches confirmed following engineering review.
